BotFramework - Direct Line Bot Sample (using client WebSockets)

Prerequisites

The minimum prerequisites to run this sample are:

The latest update of Visual Studio 2017. You can download the community version here for free.
The Bot Framework Emulator. To install the Bot Framework Emulator, download it from here. Please refer to this documentation article to know more about the Bot Framework Emulator.
Register your bot with the Microsoft Bot Framework. Please refer to this for the instructions. Once you complete the registration, update the Bot's appsettings.json file with the registered config values (MicrosoftAppId and MicrosoftAppPassword)

Direct Line API

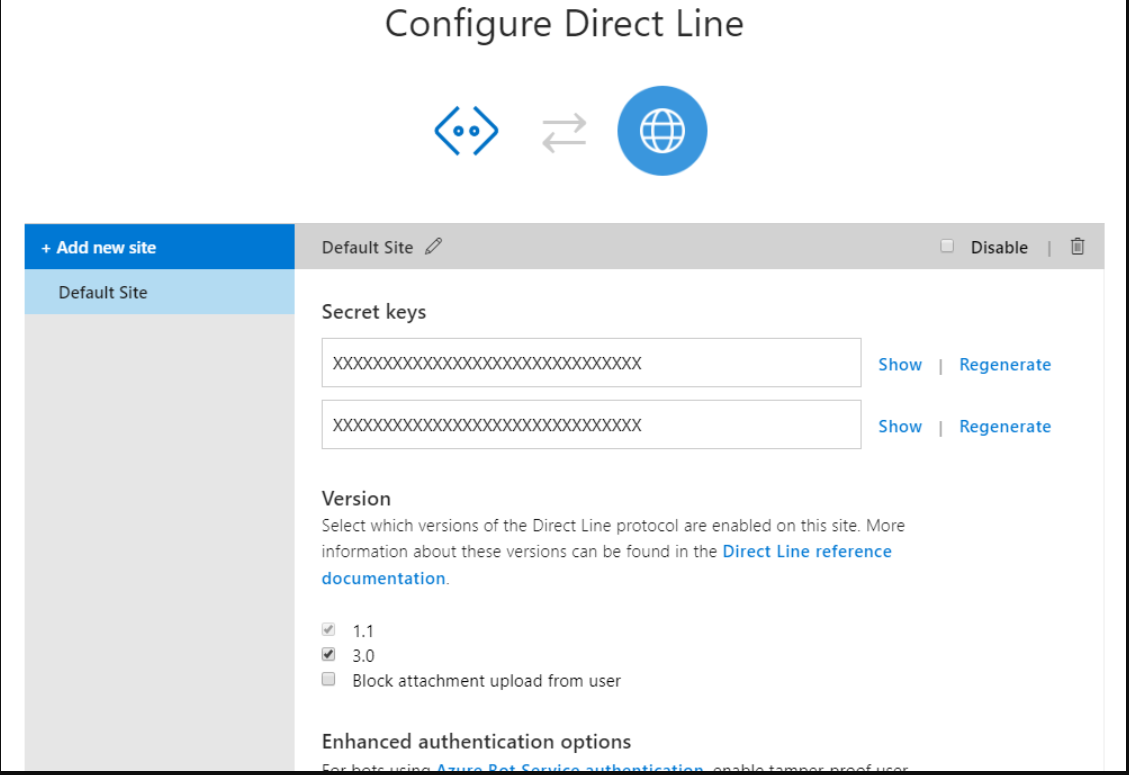

Credentials for the Direct Line API must be obtained from the Bot Channels Registration in the Azure portal, and will only allow the caller to connect to the bot for which they were generated. In the Bot Framework developer portal, enable Direct Line in the channels list and then, configure the Direct Line secret and update its value in the client's App.config file alongside with the Bot Id. Make sure that the checkbox for version 3.0 is checked. Refer to this for more information on how to configure channels.

Publish

Also, in order to be able to run and test this sample you must deploy your bot, for example to Azure. Alternatively, you can use Ngrok to interact with your local bot in the cloud.

Code Highlights

The Direct Line API is a simple REST API for connecting directly to a single bot. This API is intended for developers writing their own client applications, web chat controls, or mobile apps that will talk to their bot. The Direct Line v3.0 Nuget package simplifies access to the underlying REST API.

Each conversation on the Direct Line channel must be explicitly started using the DirectLineClient.Conversations.StartConversationAsync. Check out the client's Program.cs class which creates a new DirectLineClient and starts a new conversation.

You'll see that we are using the Direct Line secret to obtain a token. This step is optional, but prevents clients from accessing conversations they aren't participating in.

// Obtain a token using the Direct Line secret
var tokenResponse = await new DirectLineClient(directLineSecret).Tokens.GenerateTokenForNewConversationAsync();

// Use token to create conversation
var directLineClient = new DirectLineClient(tokenResponse.Token);
var conversation = await directLineClient.Conversations.StartConversationAsync();

User messages are sent to the Bot using the Direct Line Client Conversations.PostActivityAsync method using the ConversationId generated in the previous step.

while (true)
{
    string input = Console.ReadLine().Trim();

    if (input.ToLower() == "exit")
    {
        break;
    }
    else
    {
        if (input.Length > 0)
        {
            Activity userMessage = new Activity
            {
                From = new ChannelAccount(fromUser),
                Text = input,
                Type = ActivityTypes.Message
            };

            await client.Conversations.PostActivityAsync(conversation.ConversationId, userMessage);
        }
    }
}

Messages from the Bot are being received using WebSocket protocol. When the conversation was created a streamUrl is also returned and it will be the target for the WebSocket connection. Check out the client's WebSocket initialization in Program.cs.

Note: In this project we use websocket-sharp to implement the receiver client but this functionality can be implemented according to the needs of the solution.

using (var webSocketClient = new WebSocket(conversation.StreamUrl))
{
    webSocketClient.OnMessage += WebSocketClient_OnMessage;
    webSocketClient.Connect();

We use the WebSocketClient_OnMessage method to handle the OnMessage event of the webSocketClient witch occurs when the WebSocket receives a message.

private static void WebSocketClient_OnMessage(object sender, MessageEventArgs e)
{
    var activitySet = JsonConvert.DeserializeObject<ActivitySet>(e.Data);
    var activities = from x in activitySet.Activities
        where x.From.Id == botId
        select x;

Direct Line v3.0 has support for Attachments (see Add media attachments to messages for more information about attachments). Check out the WebSocketClient_OnMessage method in Program.cs to see how the Attachments are retrieved and rendered appropriately based on their type.

if (activity.Attachments != null)
{
    foreach (Attachment attachment in activity.Attachments)
    {
        switch (attachment.ContentType)
        {
            case "application/vnd.microsoft.card.hero":
                RenderHeroCard(attachment);
                break;

            case "image/png":
                Console.WriteLine($"Opening the requested image '{attachment.ContentUrl}'");

                Process.Start(attachment.ContentUrl);
                break;
        }
    }
}

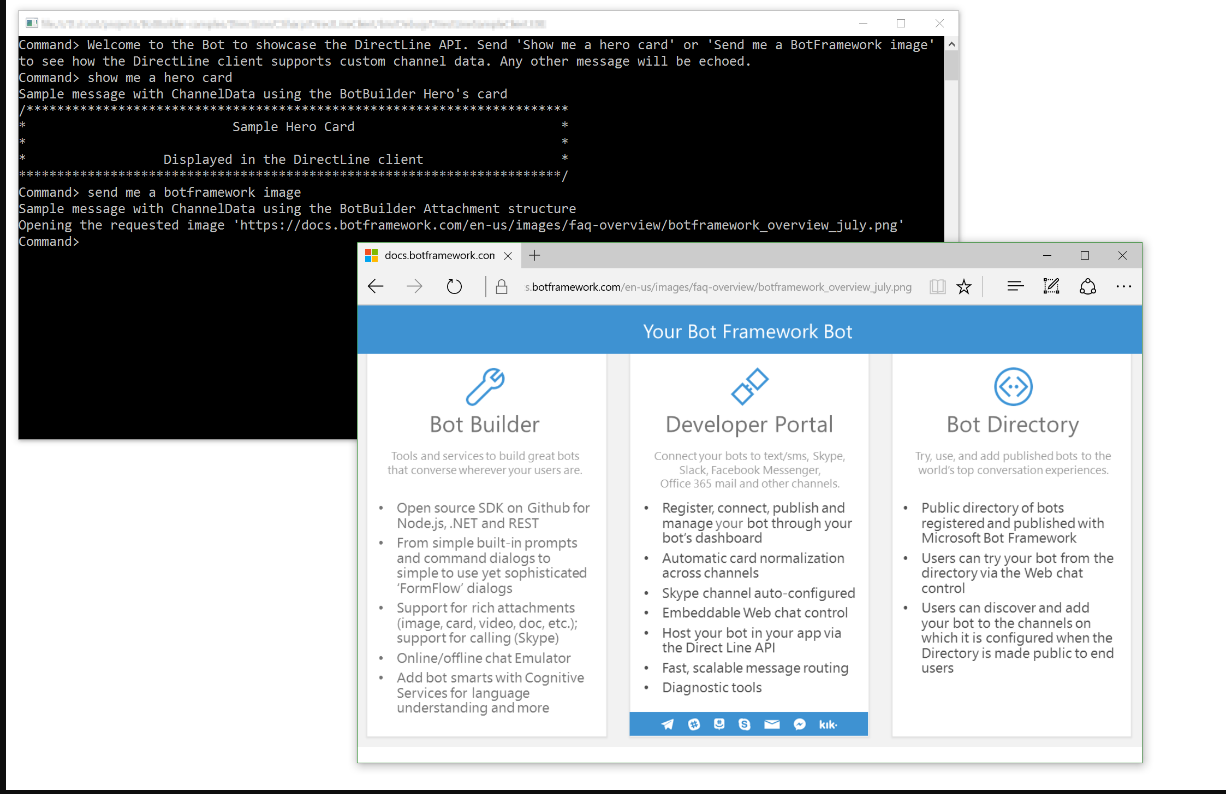

Outcome

To run the sample, you'll need to run both Bot and Client apps.

Running Bot app
1. In the Visual Studio Solution Explorer window, right click on the DirectLineBot project.
2. In the contextual menu, select Debug, then Start New Instance and wait for the Web application to start.
Running Client app
1. In the Visual Studio Solution Explorer window, right click on the DirectLineSampleClient project.
2. In the contextual menu, select Debug, then Start New Instance and wait for the Console application to start.
