Always authenticate and authorize based on all available data points.
Use secure access.
Use least privileged access
Limit user access with Just-In-Time and Just-Enough-Access (JIT/JEA), risk-based adaptive policies, and data protection.
Leverage Role Based Access Control (RBAC) and control the applications running on virtual machines.
Assume breach
Minimize blast radius and segment access. Verify end-to-end encryption and use analytics to get visibility, drive threat detection, and improve defenses.

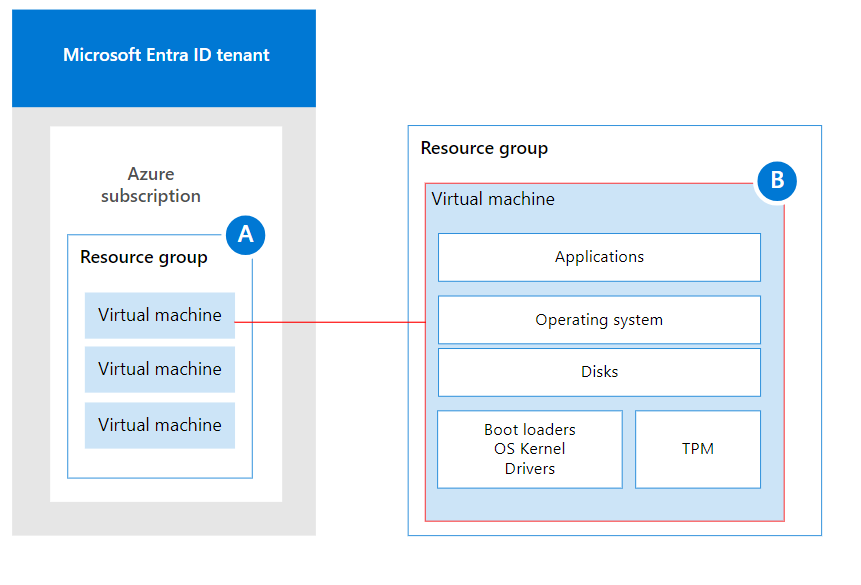

Isolate virtual machines with resource groups, secure their components, use double encryption, and enable advanced threat detection and protection.
Configure logical isolation by deploying virtual machines to a dedicated resource group.
Assume breach
2
Leverage Role Based Access Control (RBAC).
Verify explicitly Use least privileged access
3
Secure virtual machine boot components including boot loaders, OS kernels, and drivers. Securely protect keys, certificates, and secrets in the Trusted Platform Module (TPM).
Assume breach
4
Enable customer-managed keys and double encryption.
Assume breach
5
Control the applications that are installed on virtual machines.
Use least privileged access
6
Configure secure access (not shown on the logical architecture figure).
Verify explicitly Use least privileged access Assume breach
7
Set up secure maintenance of virtual machines (not shown on the logical architecture figure).
Assume breach
8
Enable advanced threat detection and protection (not shown on the logical architecture figure).
Assume breach
Step 1: Configure logical isolation for virtual machines
Begin by isolating virtual machines within a dedicated resource group. You can isolate virtual machines into different resource groups based on purpose, data classification, and governance requirements, such as the need to control permissions and monitoring.
Using dedicated resource groups allows you to set policies and permissions that apply to all the virtual machines within the resource group. You can then use role based access control (RBAC) to create least privileged access to the Azure resources contained in the resource group.
You assign a virtual machine to a resource group when you first create the virtual machine, as shown here.
Step 2: Leverage Role Based Access Control (RBAC)
Zero Trust requires configuring least privileged access. To do so, you need to limit user access with just-in-time and just-enough access (JIT/JEA) based on their role, workload, and data classification.
The following built-in roles are commonly used for virtual machine access:
Virtual Machine User Login: View virtual machines in the portal and sign-in as a regular user.
Virtual Machine Administration Login: View virtual machines in the portal and sign-in to virtual machines as an Administrator.
Virtual Machine Contributor: Create and manage virtual machines, including reset root user's password and managed disks. Doesn't grant access to the management virtual network (VNet) or the ability to assign permissions to the resources.
To join a virtual machine to a VNet, you can use the custom permission Microsoft.Network/virtualNetworks/subnets/join/action to make a custom role.
When this custom role is used with Managed Identity and Conditional Access Policy, you can use device state, data classification, anomalies, location, and identity to force multifactor authentication and granularly allow access based on verified trust.
To extend your realm of control beyond the system and allow your Microsoft Entra ID tenant with Microsoft Intelligent Security Graph to support secure access, go to the Management blade of the virtual machine and turn on System Assigned Managed Identity, as shown here.
Note
This feature is only available for Azure Virtual Desktop, Windows Server 2019, Windows 10, and Linux Distros using certificate-based access.
Step 3: Secure virtual machine boot components
Follow these steps:
When you create the virtual machine, be sure you configure security for the boot components. Enhanced deployment of virtual machines allows you to select security type and use Secure boot and vTPM.
Securely deploy virtual machines with verified boot loaders, OS kernels, and drivers that are signed by trusted publishers to establish a "root ." If the image isn't signed by a trusted publisher, the virtual machine won't boot.
Securely protect keys, certificates, and secrets in the virtual machines in a Trusted Platform Module.
Gain insights and confidence of the entire boot chain's integrity.
Ensure workloads are trusted and verifiable. The vTPM enables attestation by measuring the entire boot chain of your virtual machine (UEFI, OS, system, and drivers).
Enhanced deployment of virtual machines allows you to select security type and use secure boot and vTPM when you create them, as shown here.
Step 4: Enable customer-managed keys and double encryption
Using customer-managed keys and double encryption ensures that if a disk is exported, it isn't readable or able to function. By ensuring that the keys are privately held and disks are double encrypted, you protect against breaches that attempt to extract disk information.
After completing these procedures, you use your customer-managed encryption key to encrypt the disks within your virtual machine.
You select the encryption type on the Disks blade for the virtual machine configuration. For Encryption type, select Double encryption with platform-managed and customer-managed keys, as shown here.
Step 5: Control the applications installed on virtual machines
It's important to control the applications that are installed on your virtual machines:
Browser extensions (APIs) are difficult to secure which can lead to malicious URL delivery.
Unsanctioned apps can go unpatched as they're shadow IT objects (the IT teams aren't prepared or have no knowledge that these are installed).
You can use the Virtual Machine Applications feature to control the applications that are installed on virtual machines. With this feature, you select which virtual machine applications to install. This feature uses the Azure Compute Gallery to simplify management of applications for virtual machines. When used together with RBAC, you can ensure that only trusted applications are available for users.
You select the virtual machine applications on the Advanced blade for the virtual machine configuration, as show here.
Step 6: Configure secure access
To configure secure access:
Configure secure communication within the Azure environment between components that are accessing virtual machines directly
Set up multifactor authentication with conditional access
Use privileged access workstations (PAWs)
In the diagram:
multifactor authentication with conditional access is set up within Microsoft Entra ID and related portals.
Admins use privileged access workstations (PAWs) to access virtual machines directly.
Configure secure communication within the Azure environment for virtual machines
First, be sure that communication between the components in the Azure environment is secure.
In the reference architecture, Azure Bastion provides secure connections to virtual machines. Azure Bastion acts as an RDP/SSH broker and doesn't interact with the RDP protocol of your physical system. This also enables you to reduce the number of public-facing IP addresses.
The following diagram shows the components of secure communications for virtual machines.
Set up multifactor authentication with conditional access
When configuring multifactor authentication with conditional access and related policies, use the recommended policy set for Zero Trust as a guide. This includes Starting point policies that don't require managing devices. Ideally, the devices accessing your virtual machines are managed and you can implement the Enterprise policies, which is recommended for Zero Trust. For more information, see Common Zero Trust identity and device access policies.
The following diagram shows the recommended policies for Zero Trust.
Remember that usernames and passwords can be 100% compromised. Using multifactor authentication, you reduce your risk of compromise by 99.9%. This requires Microsoft Entra ID P1 licenses.
Note
You can use VPNs used to connect to virtual machines in Azure as well. However, you should be sure to use methods to verify explicitly. Creating a tunnel that is "trusted" regardless of how they are used can be riskier than having specific connections that are highly verified.
No amount of security at the Network, Transport, or Application layers matters if you aren't coming from a trusted, verified, and secure source.
Use PAWs
Use Privileged Access Workstations (PAWs) to ensure devices that access virtual machines are healthy. PAWs are configured specifically for privileged access so that admins use a device that has:
Security controls and policies that restrict local administrative access.
Productivity tools to minimize the attack surface to only what's absolutely required for performing sensitive administrative tasks.
Step 7: Set up secure maintenance of virtual machines
Secure maintenance of virtual machines includes:
Using anti-malware
Automating virtual machine updates
Use anti-malware on virtual machines
Anti-malware helps protect your virtual machine from threats such as malicious files and adware, etc. You can use anti-malware software from an option of vendors such as Microsoft, Symantec, Trend Micro, and Kaspersky.
Microsoft Antimalware is a no-cost resource that provides real-time protection capability to assist in detection, quarantining and eradicating malicious software, spyware, and viruses:
Runs in the background with the need of user interaction
Provides alerts when unwanted or malicious software is downloaded, installed, or run
Offers secure-by-default configuration and anti-malware monitoring
Scheduled scanning
Signature updates
Antimalware Engine and Platform updates
Active Protection
Samples reporting
Exclusions
Antimalware event collection
Automate virtual machine updates
Automating updates to systems ensures they are protected from the latest malware and misconfiguration exploits. There's automatic updating with aid in the trusted platform verification process.
Azure Automation Update Management can assist in the management of your update process. With this utility, you can check the update status of your systems, manage, schedule, and reboot servers.
The Azure Virtual Machine Agent is used to manage your virtual machines and gives you the ability to use extensions for management.
Step 8: Enable advanced threat detection and protection
Threat protection for Azure infrastructure is provided by Microsoft Defender for Cloud. This protection is extended to virtual machines when you provision Microsoft Defender for Servers, as shown in the following diagram.
In the diagram:
As described in the Apply Zero Trust principles to Azure IaaS overview article, Defender for Cloud is enabled at the level of an Azure subscription or at the level of an Azure management group that includes multiple Azure subscriptions.
In addition to enabling Defender for Cloud, Defender for Servers is provisioned.
Advanced threat protection verifies the activities occurring on virtual machines based on Microsoft's threat intelligence. It looks for specific configurations and activities that suggest that there could be a breach. It enables the Verify explicitly and Assume breach Zero Trust principles.
Microsoft Defender for Servers includes the following:
Access to the Microsoft Defender for Endpoint data that is related to vulnerabilities, installed software, and alerts for your endpoints for endpoint detection and response (EDR).
Discover vulnerabilities and misconfigurations in real time with Microsoft Defender for Endpoint, and without the need of other agents or periodic scans.
File integrity monitoring in Defender for Cloud provides you to change monitoring of files and registries of the operations system, application software, and other changes that allow you to validate the integrity of your file systems.
Adaptive application controls in Defender for Cloud provides an automated solution for creating and defining allow list for known safe applications and generates security alerts if a new application runs other than those you define as safe for use.
Adaptive network hardening in Defender for Cloud uses machine learning algorithms that calculate your current traffic, threat intelligence, indicators of compromise, and known trusted configurations to provide recommendations for hardening your Network Security Groups.
This poster provides a single-page, at-a-glance view of the components of Azure IaaS as reference and logical architectures, along with the steps to ensure that these components have the "never trust, always verify" principles of the Zero Trust model applied.
This poster provides the reference and logical architectures and the detailed configurations of the separate components of Zero Trust for Azure IaaS. Use the pages of this poster for separate IT departments or specialties or, with the Microsoft Visio version of the file, customize the diagrams for your infrastructure.
