Determine Technical archiecture Style

category

Definition of Terms

Architectural style defines:

  • a family of systems in terms of a pattern of structural organization; a vocabulary of components and connectors, with constraints on how they can be combined.
  • Architectural styles are reusable 'packages' of design decisions and constraints that are applied to an architecture to induce chosen desirable qualities.

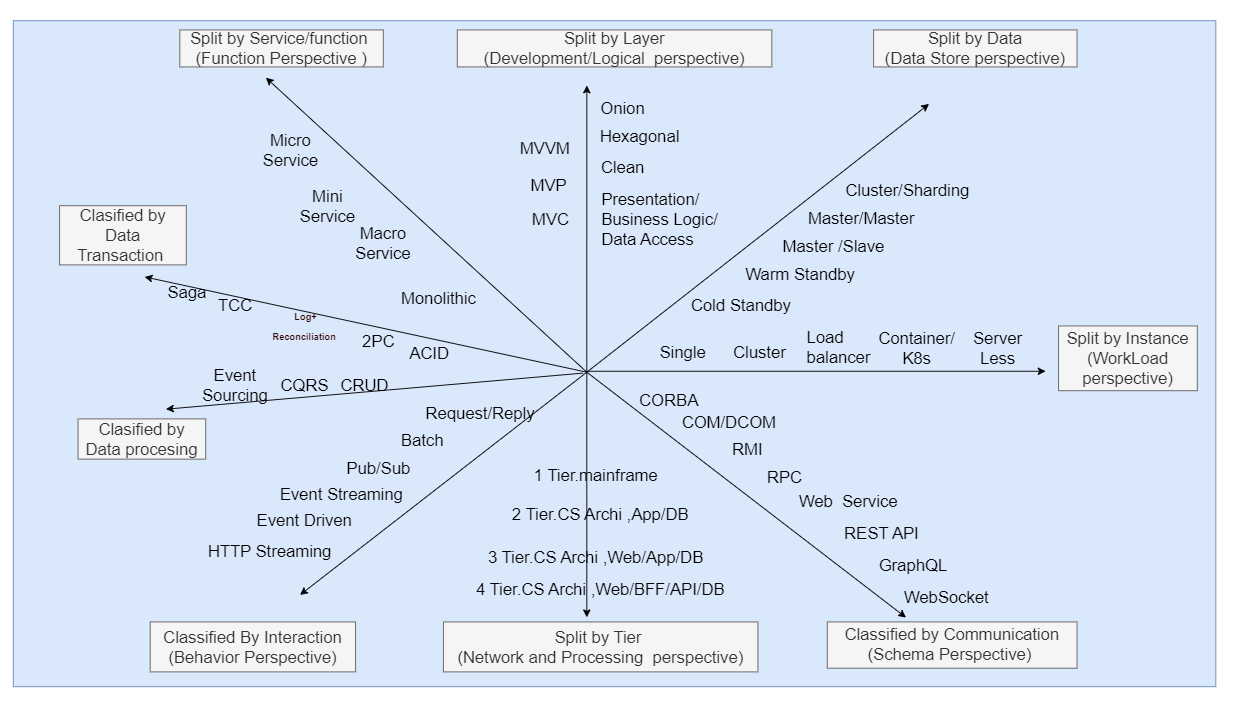

Architecture Style Overview:


Best Practice

Perspective

General recommendation

 Reference

Function

Micro-service for business application. Other application depends requirement

Functions Granularity Perspective

Develop

Hexagonal



Presentation

MVVM



Data Store

Master/Slave.



Workload

K8S



Communication & Service

HTTP /REST

Service Prespective

Tiering /layering

4 tier for business application ,other application depends requirement



Interaction

Request/Reply(Synchronous interaction ),pub/sub (Asynchronous interaction)



Data processing

CRUD.



Data transaction

ACID. Could use Saga and BASE in micro-service application.

Consistency Mechanism for Data Transaction Perspective

Run-time environment

Container first


Data Store PostgreSQL Standalone /PostgreSQL Cluster

Data Store Perspective
Design Recommendation
  • Technical architecture design needs to consider multiple perspectives.
  • Choose the right architecture  style for each perspective.
  • The technical architecture style can refer to the general selection of the domain to which the application belongs.
  • The baseline design can be done first, and the architecture  style selection of the architecture can be adjusted after the analysis of non-functional requirements.
